Cisco Router

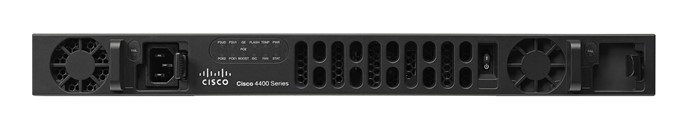

Cisco ISR 4431 Security router ISR4431-SEC/K9

Cisco ISR 4431 Security router (2GE,2NIM,1SM,4G FLASH,4G DRAM,Advanced Security)

Product Specification:
  • Place of Origin : USA
  • Brand Name : CISCO
  • Certification : FCC
  • Model Number : ISR4431-SEC/K9
  • Minimum Order Quantity : 1/unit
  • Delivery Time : 3 days
Inquiry Now
Product Details



Cisco ISR4431-SEC/K9 is the Cisco ISR4431/k9 router with Security Bundle. Its other specifications

are the same as ISR4431/k9.



500Mbps-1Gbps system throughput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power,

Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC, separate control data and services CPUs





 Specification



Cisco ISR4431-SEC/K9 Specification

Type

Cisco ISR4431/K9 with Security Bundle

Aggregate Throughput

500Mbps to 1Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

NA

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

NA

Default memory DDR3 ECC DRAM (data plane)

2 GB

Maximum memory DDR3 ECC DRAM (data plane)

2 GB

Default memory DDR3 ECC DRAM (control/services plane)

4 GB

Maximum memory DDR3 ECC DRAM (control/services plane)

16 GB

Default flash memory

8 GB

Maximum flash memory

32 GB

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port - RJ45 (up to 115.2 kbps)

1

Serial auxiliary port - RJ45 (up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC, and PoE

Redundant power supply

Internal: AC, DC, and PoE

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

3 to 1.3A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts)

65

Maximum power with AC power supply (watts)

250 (no PoE)

Maximum power with PoE power supply (platform only) (watts)

500 with PoE redundant

Maximum endpoint PoE power available from PoE power supply (watts)

250 W with optional redundancy



Cisco ISR 4431 Security router ISR4431-SEC/K9 is sealed in cisco original box. We will also pack

ISR4431-SEC/K9 with second box before shipping.



Our products will be send via FedEx,DHL,TNT,UPS,EMS and so on.but the buyer is responsible for

customs clearance and pay tariff when the product arrived destination country.
