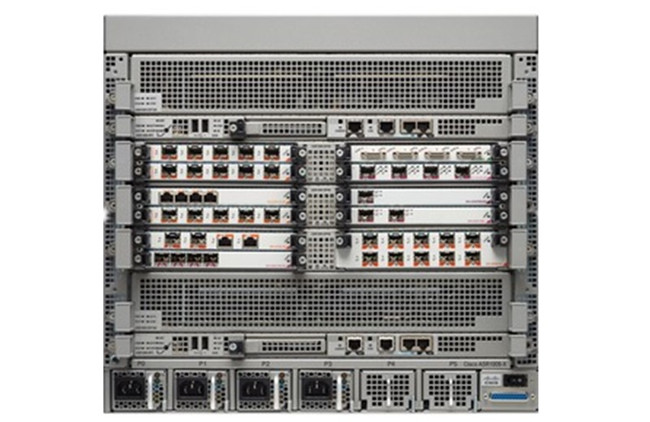

Cisco ASR 1000 Series Router ASR1009-X

ASR1009-X Specifications

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 15.72 in. (399.3 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  50 lb empty

●  154 lb (70 kg) (with three fan modules, four AC power supplies, two power bay blanks, two Cisco ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], three Cisco ASR 1000 Series 100-Gbps MIPs [ASR1000-MIP100], six EPA blanks, and no EPAs)

Default memory

8-GB DRAM RP2

8-GB DRAM RP3

Number of SIPs or Ethernet line cards supported

3

Shared port adapters

12 SPA slots

Ethernet port adapters

6 EPA slots

Cisco ASR 1000 Series ESP

2 ESP slots

Route processor

2 route-processor slots

Redundancy

Hardware: Yes

Built-in Gigabit Ethernet ports

0

Built-in 10 Gigabit Ethernet port

No

Network interface module

No

Cisco ASR 1000 Series

Cisco ASR 1009-X

ESP support

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40),
Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100), and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200)

ESP bandwidth

40 to 200 Gbps

ESP memory

Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40):
8-GB DRAM

Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM

Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM

SIPs and Ethernet line cards

Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE (ASR1000-2T+20X1GE) line cards; and six 10 GE line cards (ASR1000-6TGE)

Embedded hardware-based encryption

Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78-Gbps crypto support throughput

Minimum Cisco IOS XE Software release

Cisco IOS XE Software Release 3.16.0

Rack-mounting

Yes: 19-inch

Wall-mounting

No

External USB flash memory

1-GB USB flash-memory support

Redundant power supply

Yes: Dual power supplies by default, expandable up to a total of six, depending on configuration and redundancy preferences; option of either 1100W AC or 950W DC

Note: A mix of AC and DC power supplies is not supported.

Power input

Worldwide ranging AC input range (85 to 264 VAC)

Worldwide ranging DC

(-40 to -72; -48V nominal)

Power consumption

●  Maximum (DC): 5200W

●  Maximum (AC): 5100W

●  Maximum (out): 4575W

Airflow

Front-to-back

Operating temperature (nominal)

Same as for Cisco ASR 1001-X

Operating temperature (short-term)

Same as for Cisco ASR 1001-X

Operating humidity (nominal) (relative humidity)

Same as for Cisco ASR 1001-X

Operating humidity (short-term)

Same as for Cisco ASR 1001-X

Storage temperature

Same as for Cisco ASR 1001-X

Storage humidity (relative humidity)

Same as for Cisco ASR 1001-X

Operating altitude

Same as for Cisco ASR 1001-X

Network Equipment Building Standards (NEBS)

GR-1089 and GR-63 (in progress)

EMC standards

Same as for Cisco ASR 1001-X

Safety Standard

UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1
